  • 900MHz testing had been going on since 2009 when a prototype master modem system was installed at Port Alma plant, on the old "TV" tower about 60ft above ground level. There was this YAGI on the tower, remote testing consisted of running around the lake on the KJ and making signal strength measurements. The prototypes were used as vehicles to develop code, a successful strategy. See first row of pictures below.
  • A second master system was installed at Morpeth plant tower in September 2010. This system was never used, see second row of pictures below.

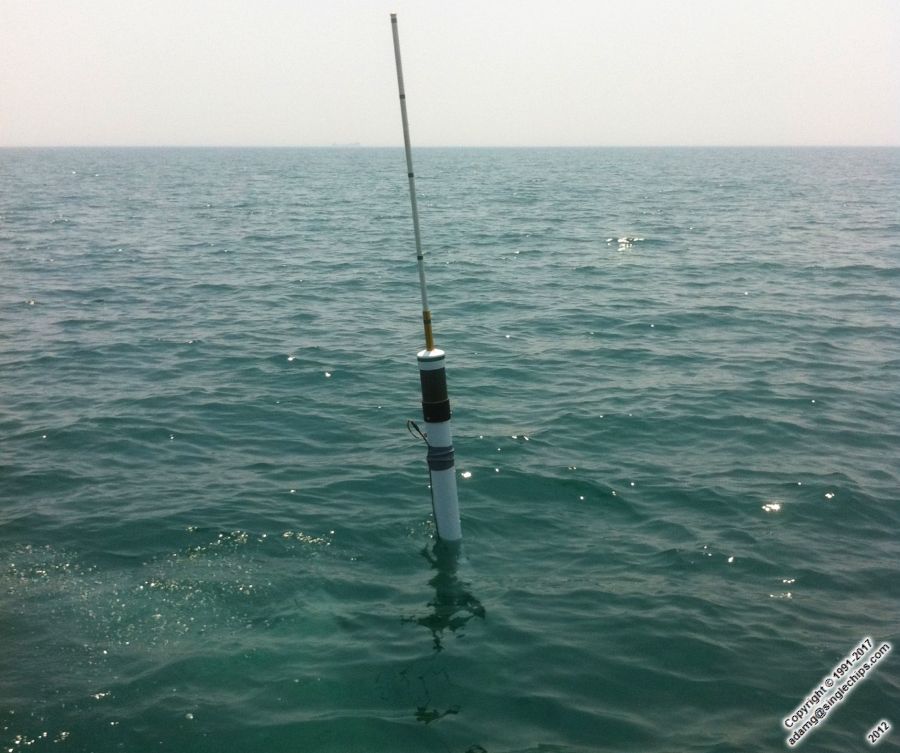

  • In December 2011, the old "TV" tower was replaced at Port Alma and a new, directional master system was installed, see third row of pictures below. This system was used in May 2012 to remotely download a datalogger at 353S, some 38 Kms away, establishing the first and last distance record. The picture on the left shows the remote modem connected to the datalogger below. See third row of pictures below.
  • The Port Alma master system was eventually moved to a plunger lift candidate well in Rochester, Ontario. The objective there was to publish remote data on the internet and to also control the system and download remotely through the internet.
  • The test system achieved its objective of publishing data to the internet using a device known as the "Flyport", the recorded data is still in the cloud. In the meantime, the Flyport was being replaced by the FlyportPRO by the manufacturer so a test system was built to replace the original Flyport.
  • Unfortunately the test remote system disappeared from Rochester, never to be seen again, "safety" excuse invalid for years.
  • A system similar to the original Flyport has been running for several years now, hardware investment $75, more info here.

    PDL/CDi History Version 2.0: rflink

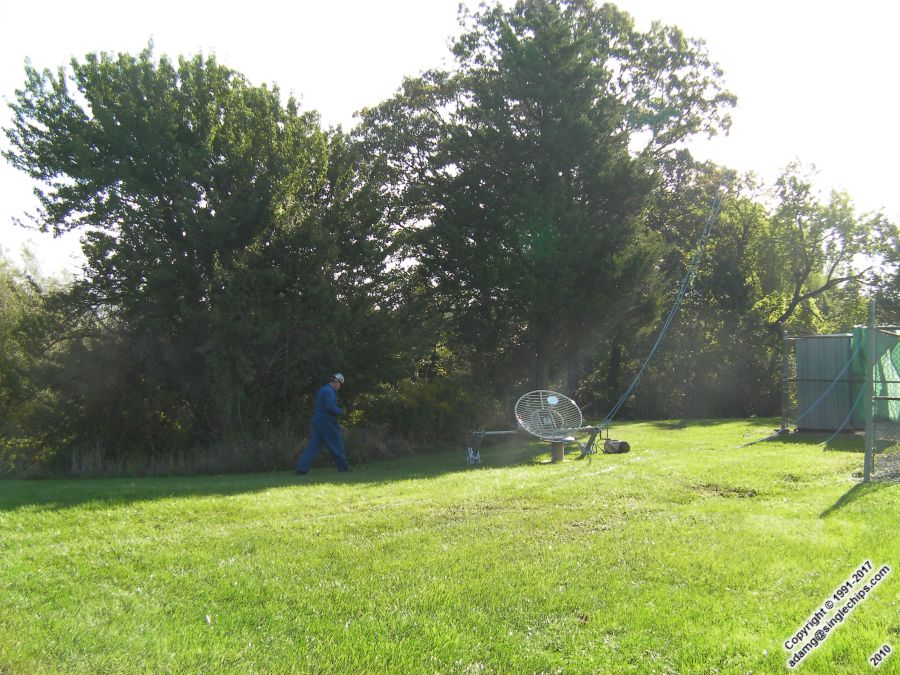

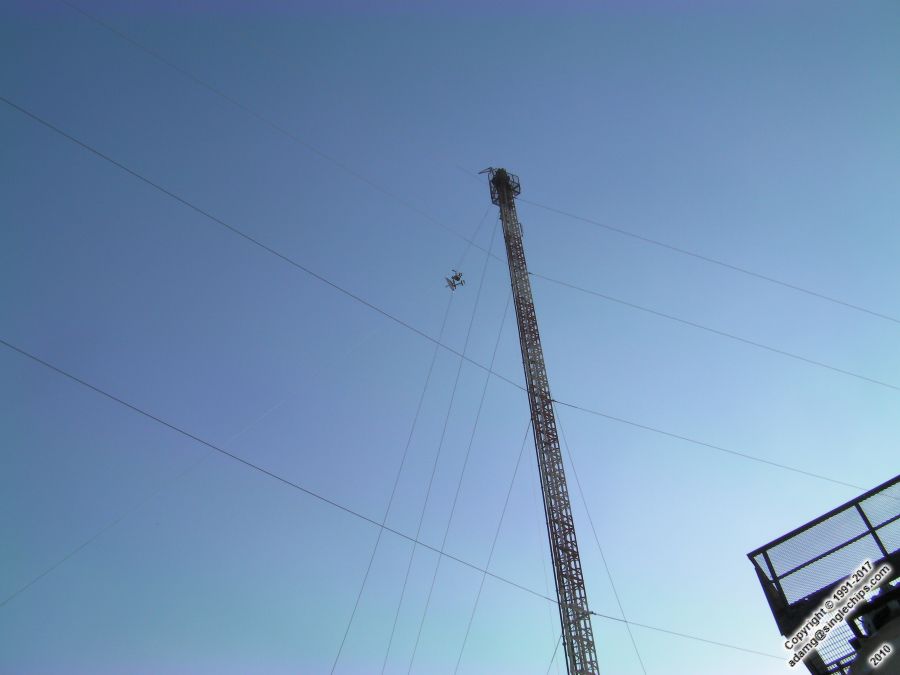

Morpeth antenna installation on plant tower, Sept 2010
Port Alma new tower and 900MHz antenna installation, Dec 2011

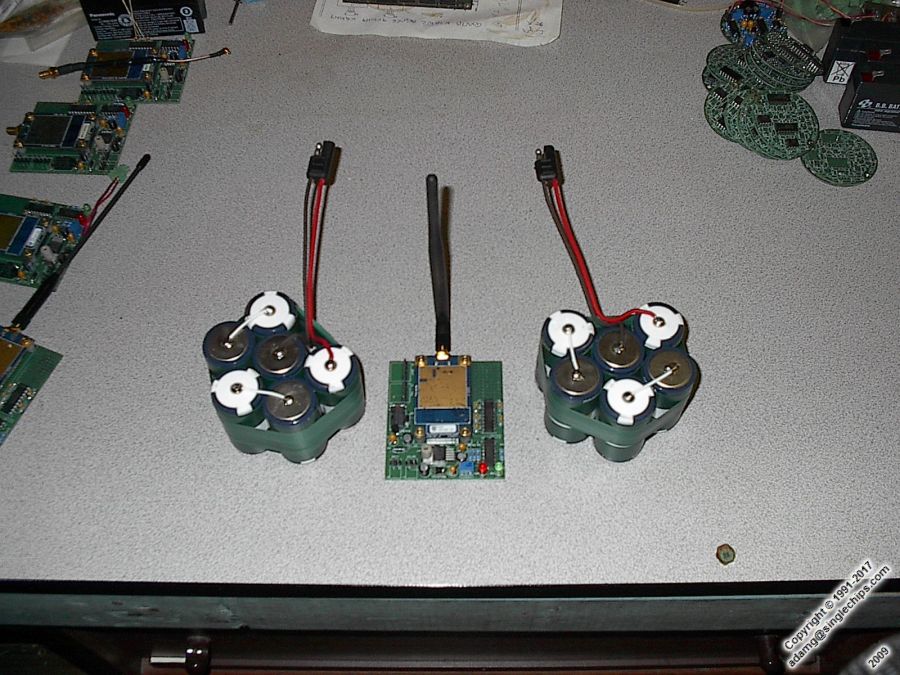

Spring 2009. Prototype modem boards
Spring 2009. Prototype master modem assembly

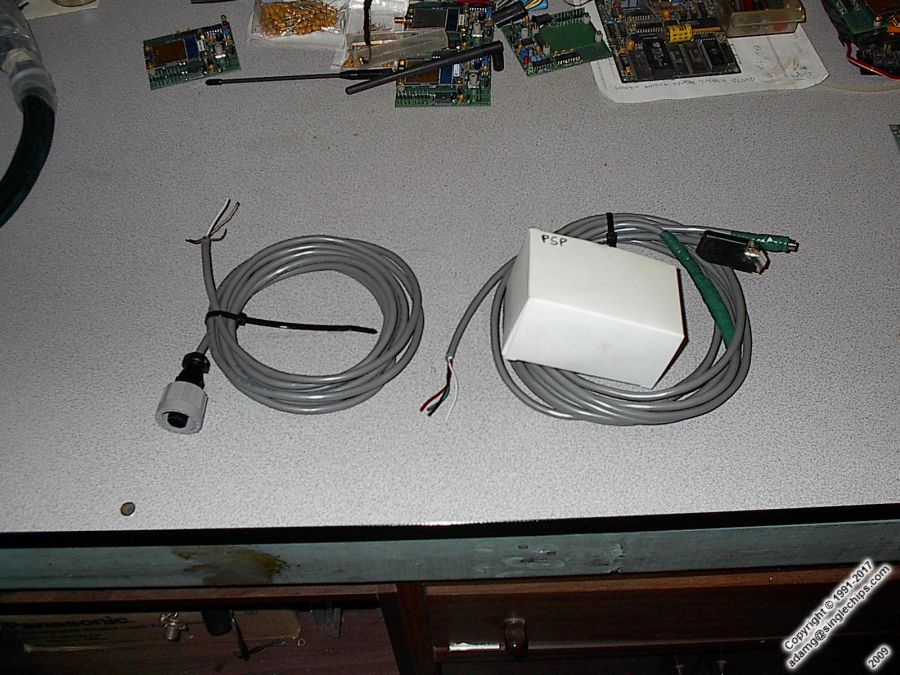

Spring 2009. Prototype master wiring

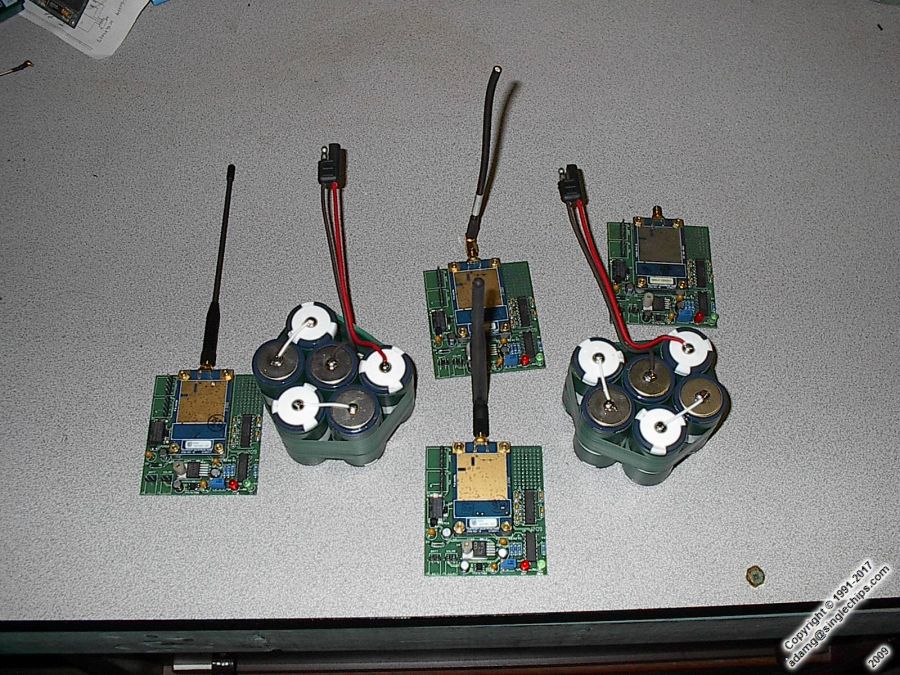

Spring 2009. Prototype remotes and battery packs
Spring 2009. Prototype remotes and battery packs
Spring 2009. Prototype remote battery before and after potting

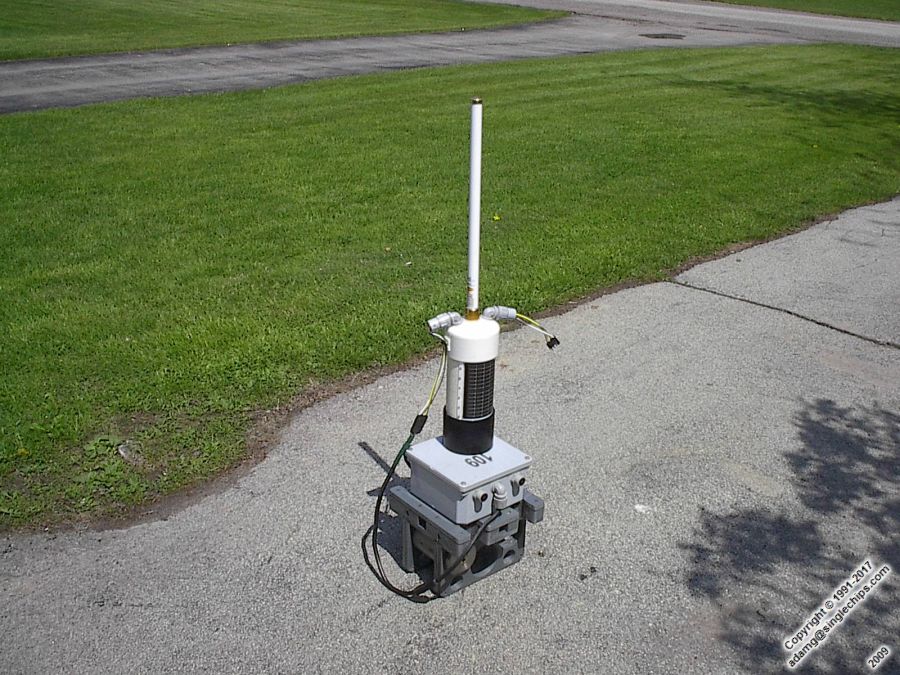

Spring 2009. Prototype remotes
Spring 2009. Original prototype remote
Fall 2010.Master modem power supply and master modem

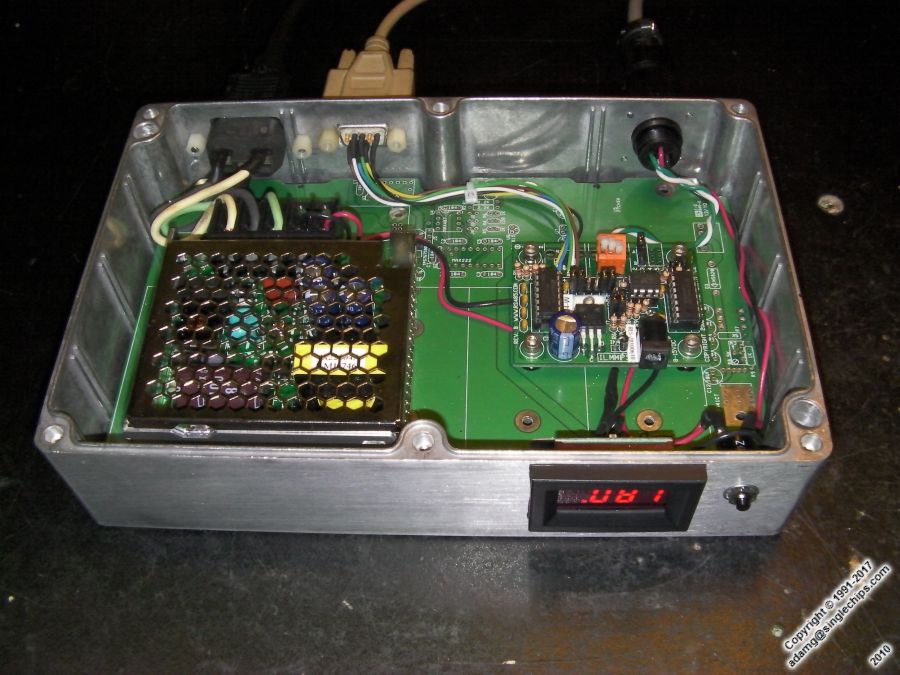

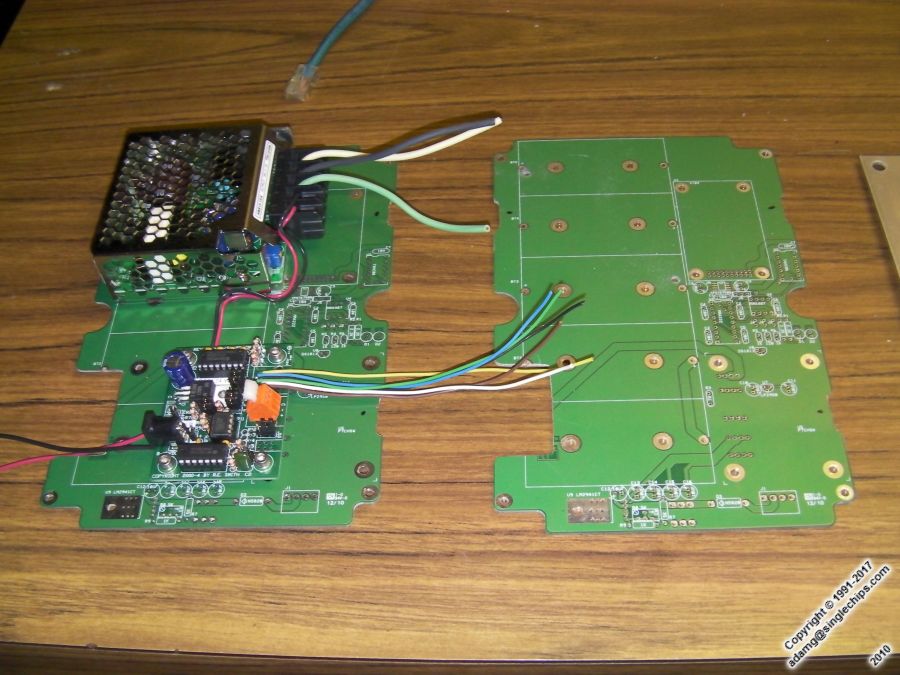

Fall 2010.Master modem power supply and board

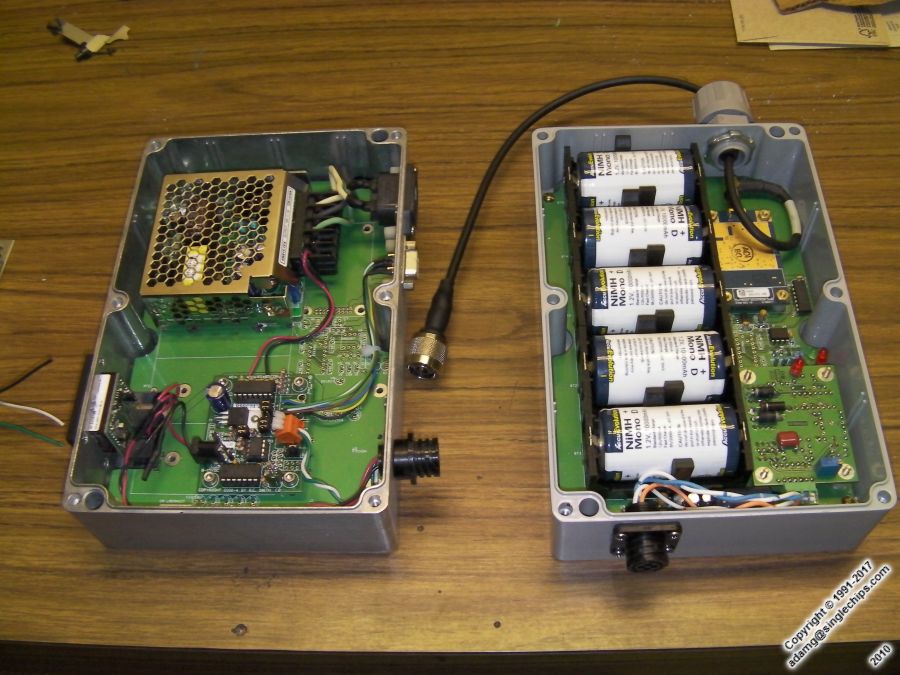

Fall 2010. Master modem
Fall 2010. Master modem power supply

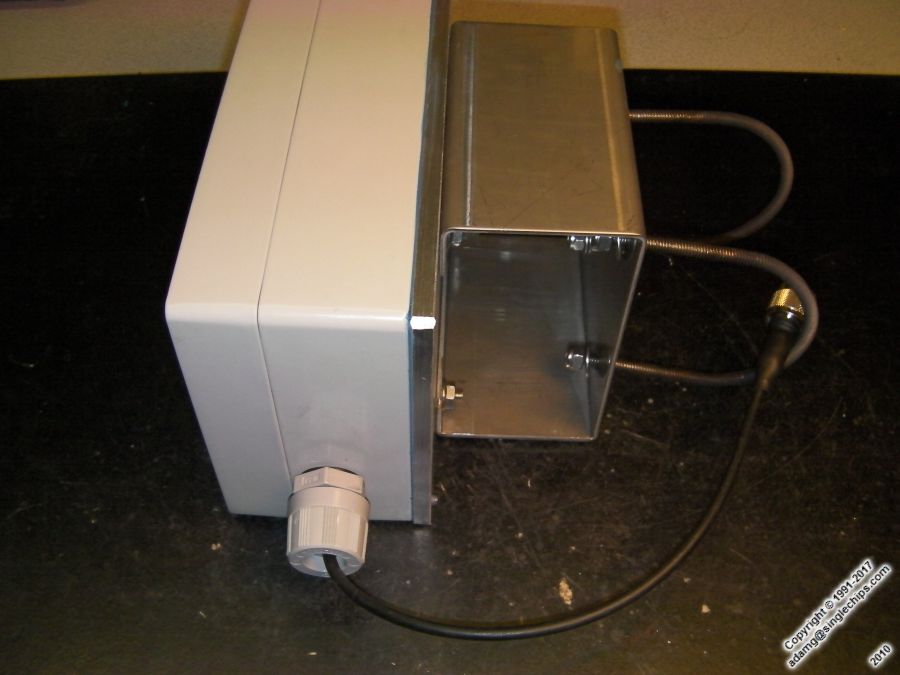

Fall 2010. Master modem assembly for antenna mast

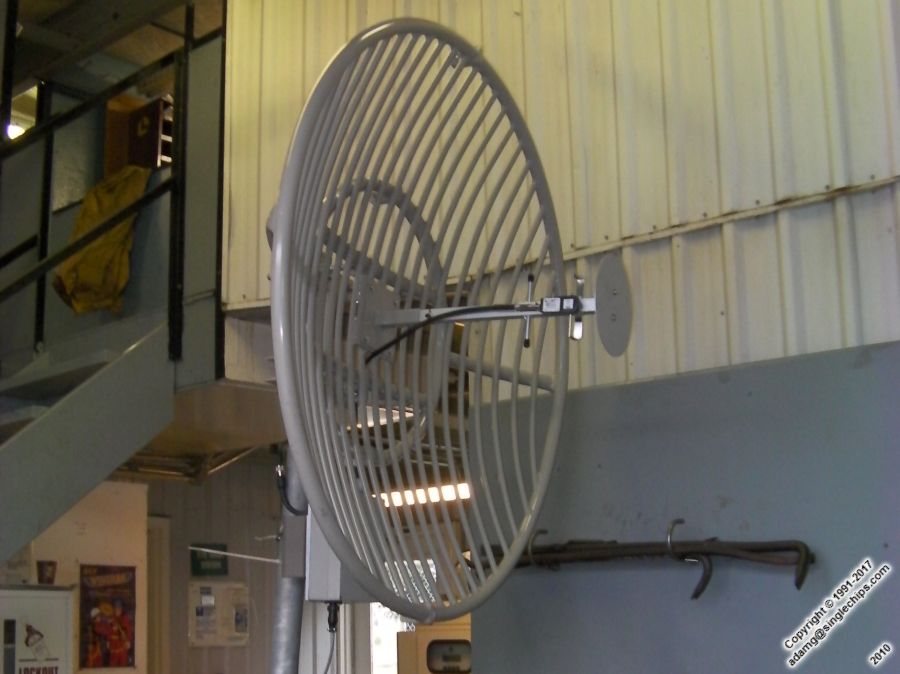

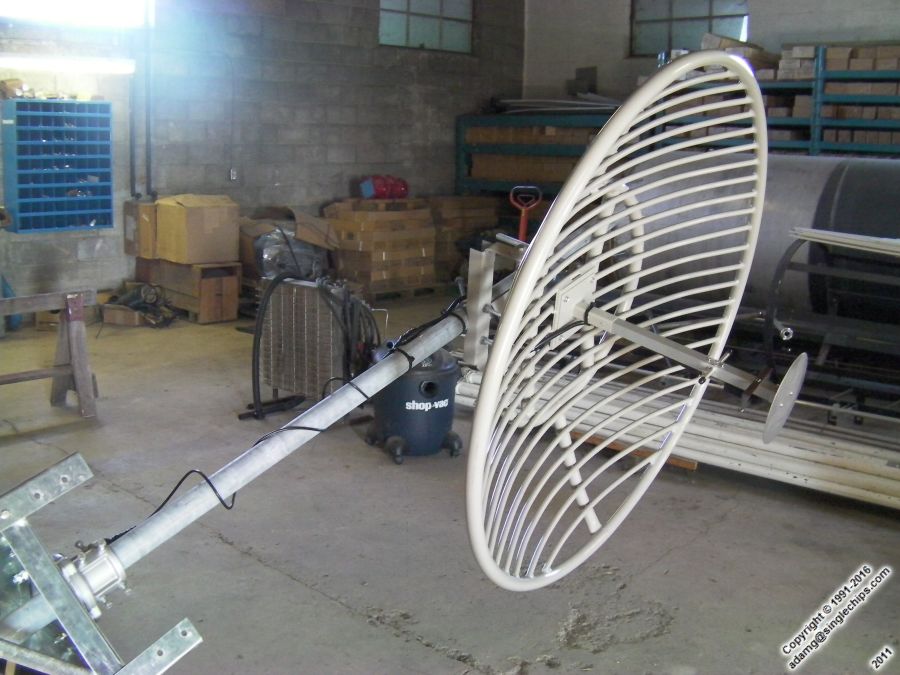

Fall 2010. Dish 900MHz antenna
Fall 2010. Dish 900MHz antenna assembly
Fall 2010. Up she goes!
Dec 2011. Port Alma tower, top section in the shop
Dec 2011. Port Alma tower, stripping the old tower

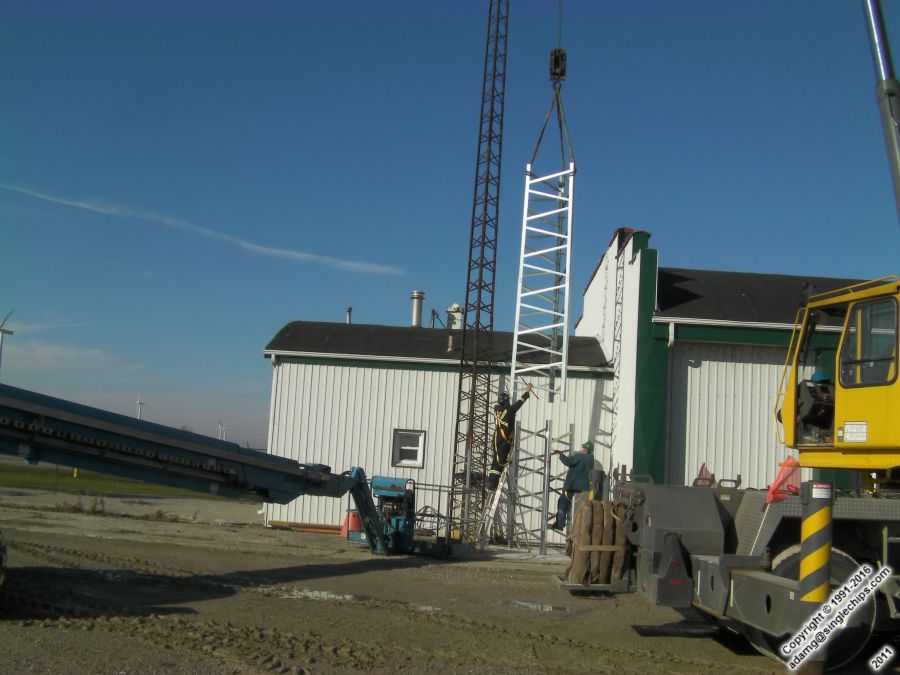

Dec 2011. Port Alma tower, new tower section

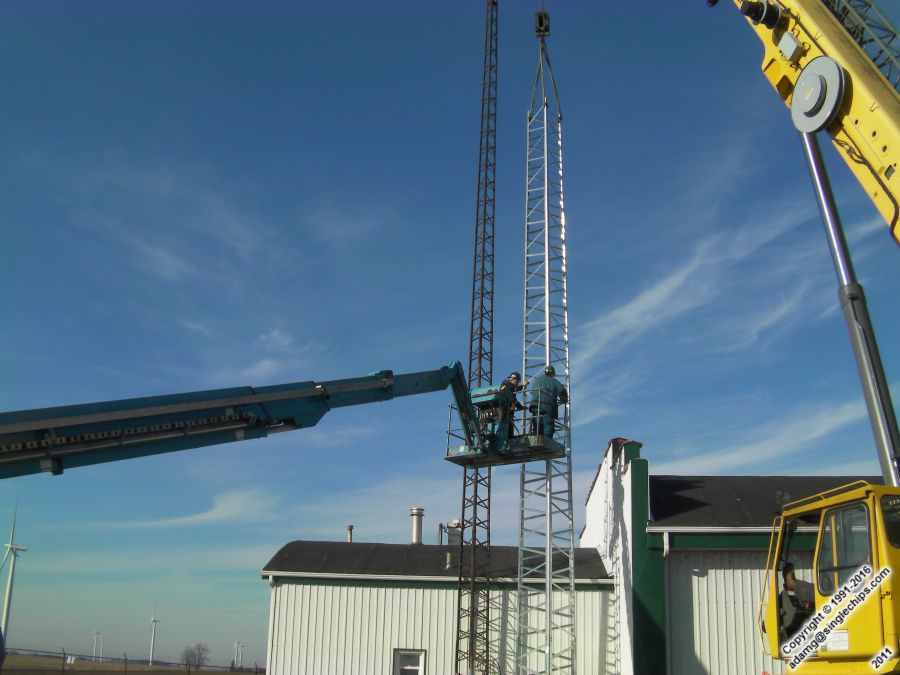

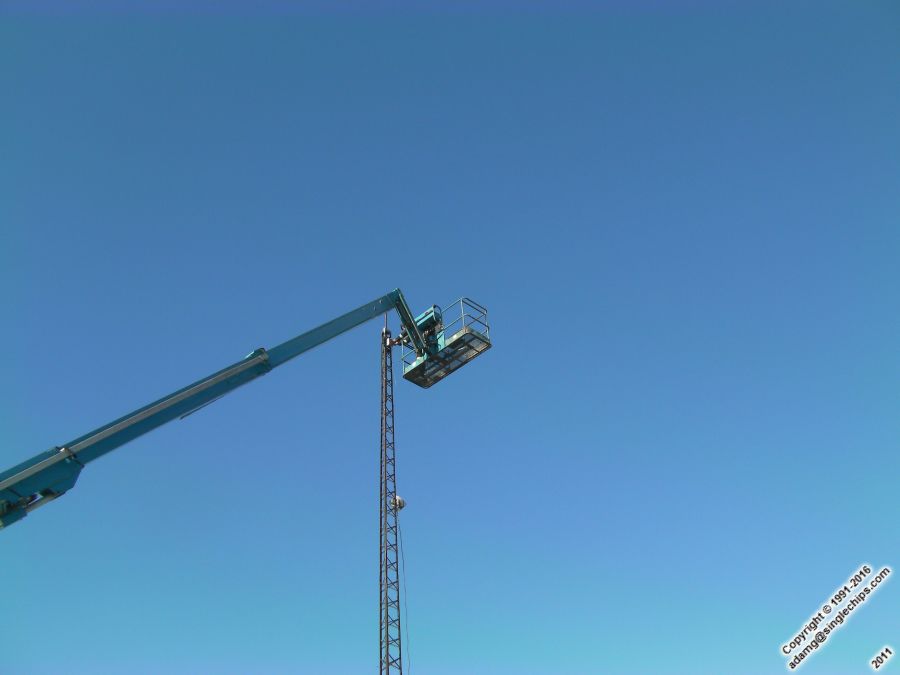

Dec 2011, Port Alma. A couple of more sections go up

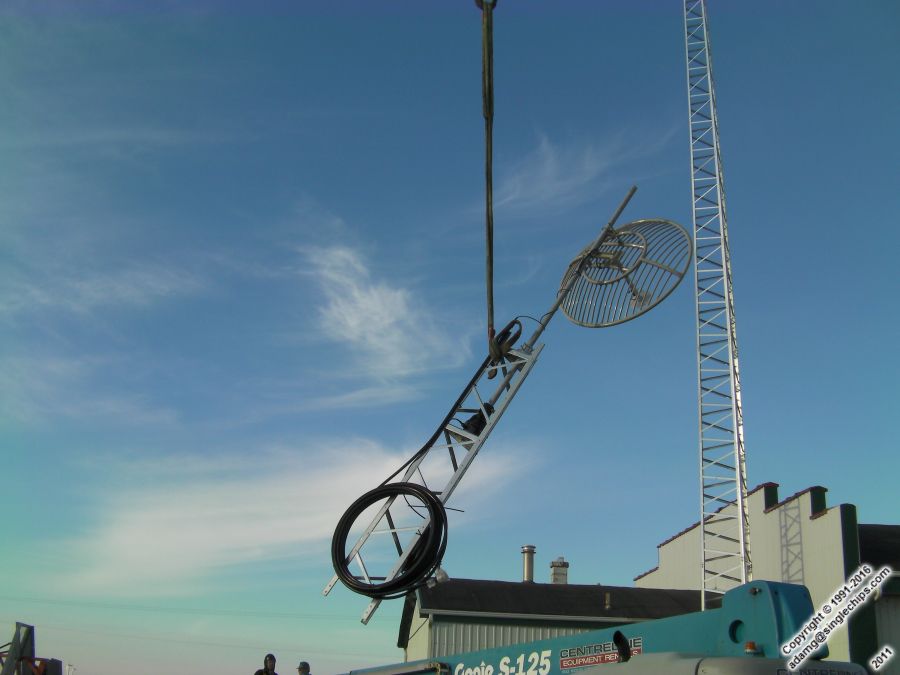

Dec 2011, Port Alma pre-assembled tower section goes up
Dec 2011, Port Alma last piece to go
Dec 2011, Port Alma tower top piece in place

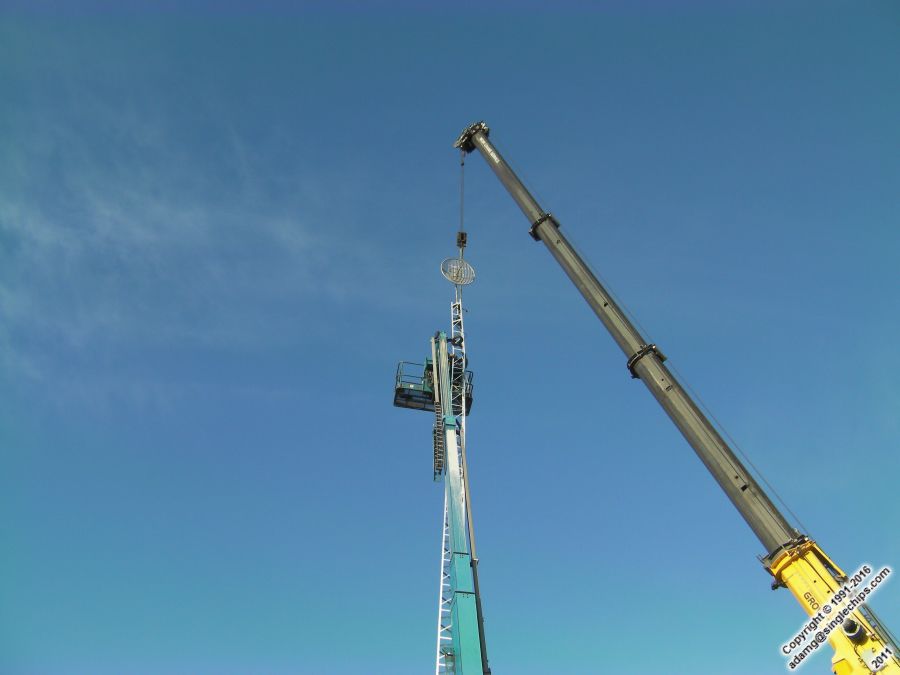

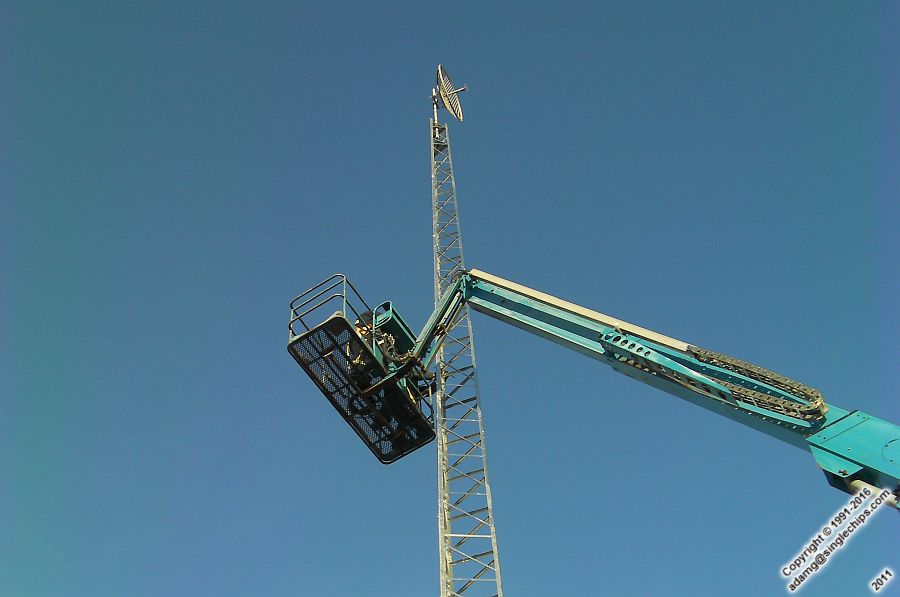

Dec 2011, Port Alma dish in place
Port Alma master prototype and remote prototype, Spring 2009
